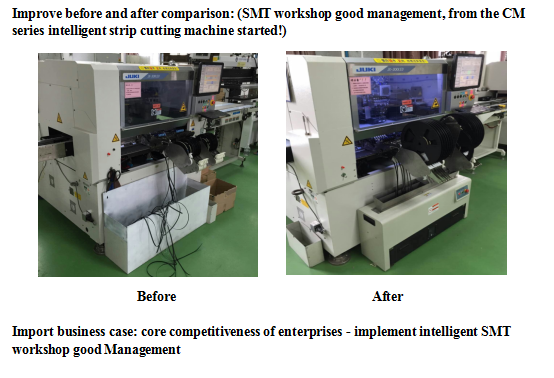

If you have trouble with the strip in SMT workshop which is not easy to collect . If you are worried about the machine and accessories damage because of the strip still did not cut , and at the scene of the production of clean, lost customer orders? These worries., perhaps because worry "strip" takes us a lot of trouble, LT introduce automatic intelligent strip cutting machine, which do not need manual management and placement machine cleaning waste belt for you.

   CM - 480A SMT intelligent strip cutting machine is used for patch material recycling.There is no built-in recovery function of the placement machine as usual.Recycling waste material is done with garbage can, personnel use the scissors to cut off the hand. And SMT strip cutting machine is completely replace manual cutting strip with rule collection. Without dedicated facilities placed waste of material, it can do the same work efficiently.

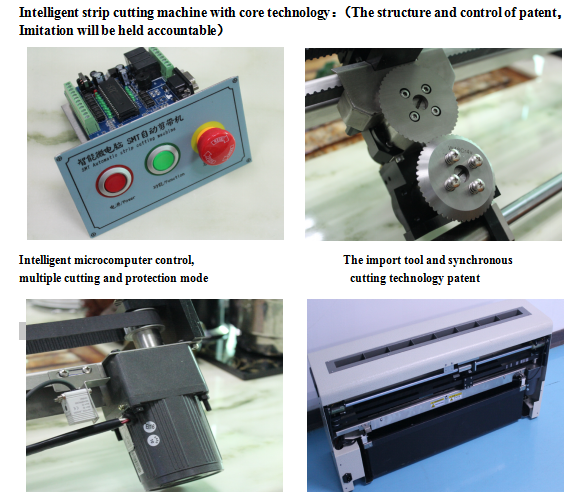

1. Microcomputer intelligent control blanking time delay, and two kinds of patterns :time delay shear belt and sensor model (with board pasted on shear band);

2. Without gas supply, the use of gear motor, high torque, compared to conventional pneumatic cutting tape machine, because the pneumatic high frequency, the high consumption of compressed air, high cutting material cost, high consumption devices in addition to the cost of the blade, not easy to control the produce cost .

3. New cutting machine is suitable for the SMT various material, from 0.04 mm film to 1.5 mm thick belt can be easily cut;

4. Stable performance: imported hard tooth shape HSS cutting tools, similar to the principle of scissors, cut off all kinds of material, stable and durable, effective shearing width is 480 mm;

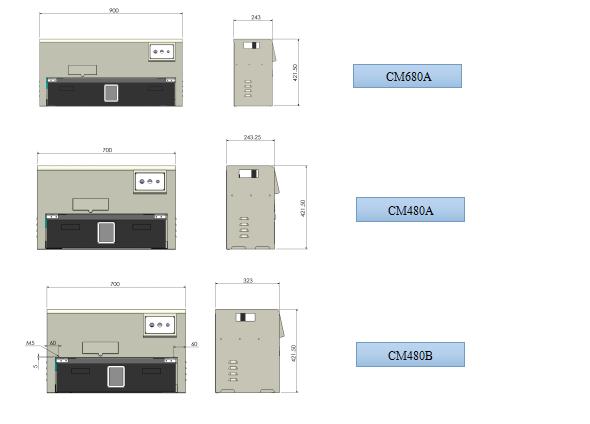

5. Machine appearance size: (L)700mmX(W)360mmX(H)440mm, cover an area of an area small, usage and storage are very convenient;(this dimension is customized according to customer's placement machine feida head width of);
6. Flexible: only 26 kg weight, equipped with four straight to the caster, convenient transportation.

7. Antistatic type material box + stainless steel stent borders;(advantages: good appearance, light weight, strong and durable), and is equipped with safety sensors.The material box installation of safety sensing device status alarms,no material box without shear zone

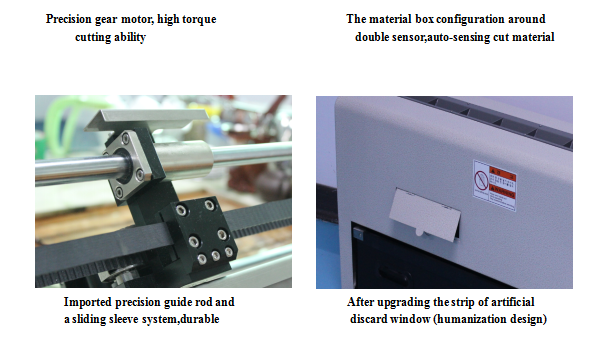

8. Precision CNC machining cut foot drive system + double linear guide

9. Adopt CNC sheet metal process + high adhesion plastic spraying processing, durable, premium.

No Item Specification

1 Cutting Mechanism ：Rotational Circular Gear Blades

2 Available Tape：

Paper Tape (8~32mm)

Embossed Plastic： Other.

Very thin vinyl tape not recommended.

3 Cutting Speed： 76 mm/sec.

4 Pause time ：1-30 second, preset at factory.

5 Effective Cutting Length ：480 mm

6 External Dimension： 700 x 360 x 440 (L x W x H)

7 Collection Bin 485 x 215 x 175 (L x W x H)

8 Total Weight 26 Kg

9 Noise Level ：Lowerthan 70dB (new)

10 Main Power Supply ：220VAC (Single Phase, 50/60Hz)

11 Electric Consumption ：100W

12 Control System Type MCU (Micro Computer Unit)

13 Motor Spec. 15W, 220VAC 50/60Hz
