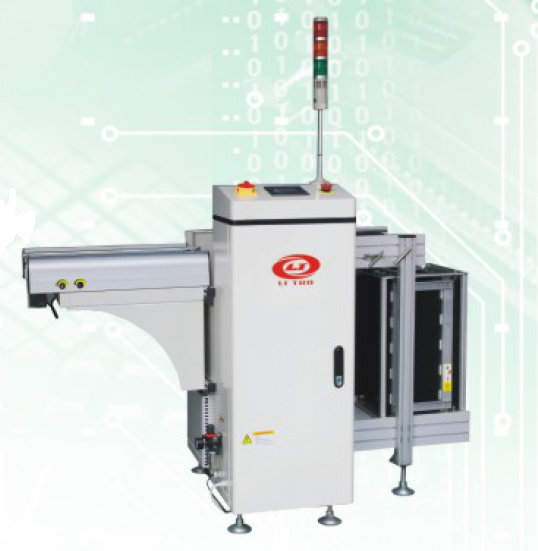

LT-500UL automatic unloader machine
Model: lt-500UL
Number: 06001
Brand: LT
欢迎使用ueditor!
model | LT-500UL | LT-500L | LT-600UL |
PCB size(mm) | 350*50～250 | 350*50～250 | 535*120～460 |
Conveyor height(mm) | 900±20 | 900±20 | 900±20 |
Transmission direction | L→R | L→R | L→R |
Step chioce | 10 20 30 40 mm | 10 20 30 40 mm | 10 20 30 40 mm |
Rack specification(mm) | 355*320*563 | 355*320*563 | 535*535*570 |
Gas source(㎏/cm2) | 5～7 | 5～7 | 5～7 |
Power supply | AC220V50HZ/60HZ | AC220V50HZ/60HZ | AC220V50HZ/60HZ |
Power consumption(w) | 290 | 290 | 350 |
Dimension (mm) | 1700*740*1170 | 1300*740*1170 | 1700*960*1150 |
weight(㎏) | 220 | 200 | 280 |
