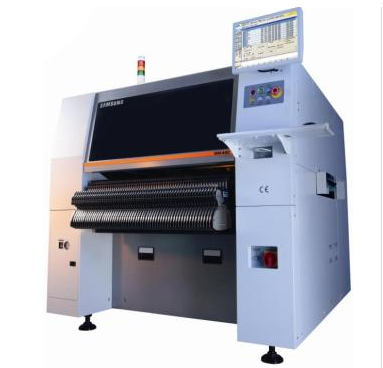

SM482 chip Mounter
Model: SM482
Number:
Brand: SUMSUNG
As a general component placer whose applicability to odd-shaped parts is reinforced based on the platform of the SM471, equipped with a head with one gantry and 6 spindles, the SM482 is applicable up to □55mm IC parts. It supports a polygon recognition algorithm to provide an optimum solution for the application to odd-shaped parts.
In addition, it has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
▶ 28,000 CPH(Optimum)
▶ 1 Gantry x 6 Spindles/Head
▶ Applicable part: 00603 ~ □42mm(H 15mm), 0402(Option)
~L75mm Connector
▶ Applicable PCB: 460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
▶ High speed, high precision and electrically driven feeder
- Automatic pick-up position alignment function
- Compatible with SM pneumatic feeders
▶ New vacuum system and optimized pickup/placement motion SMART Feeder
- World’s first Auto Splicing and Auto Loading
