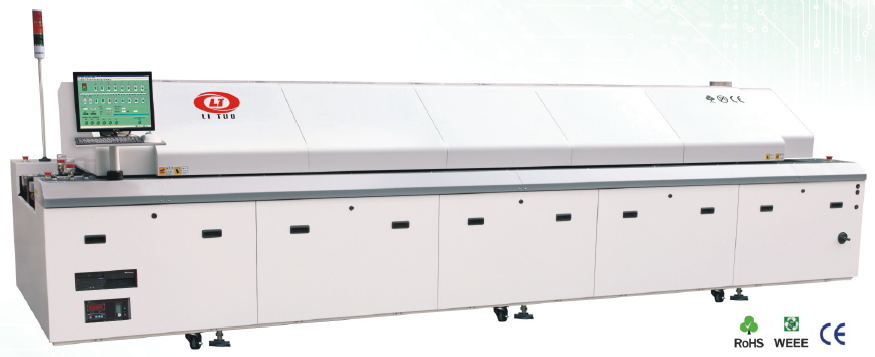

RS-8CR reflow
Model: RS-8CR
Number: 01009
Brand: LT
Lead free reflow oven | |||
Model | MS-8CR | ||
Heating part parameter | Controlling parameter | ||
Heating zone | 8/8～16 | power supply | 3p5w 380V/220V 50/60HZ |
Heating length | 2765mm | Total Power(kw) | 49 |
Cooling zone | 2 | Power of consumption operation(kw) | 9 |
Exhaust capacity | 10m3/min | Range of temperature control | Ambient to320 |
Conveyor parameter | Temperature control | PID+SSR | |
Max.width of PCB | 350mm | Precision of temperature control(℃) | ±1 |
Conveyor direction | L→R | PCB Precision of temperature(℃ ) | ±2 |
Conveyor rail fixed | Front or rear | Dimension (mm) | 4260*1200*1470 |
Height of conveyor (mm) | 900±20 | Weight(㎏) | 1400 |
PCB Transport system | Chain&mesh | Trouble alarm | |
Conveyor speed | 300～2000mm/min | Board drop alarm | |
1.Designed for microelectronics welding, precisely temperature control to meet the requirement BGA/QFP/CSP
2.Windows XP system,both Chinese and English operating software
3.Operating platform designed by Lituo,powerful in temperature control curve test and analysis
4.Equipped with standard hot wind frequency conversion control,longer cooling zone, the machine meet the high requirement of lead free welding
5.Up-cover can be wholly opened automatically with UPS power supply,operating and conveyor system still run without normal power supply, cut down loss effectively
6.Bring in the hot air tunnel technology from Germany, higher efficiency reduce energy consumption
7.Heating system divided into zones, heating parts and motor maintenance conveniently
8.Controlled by SIEMENS PLC+PID, machine work normally sin computer, increased stability
9.Make the temperature test simple with curve analysis software , equipped with alarm system
